A modular, customizable and easy-to-integrate rider safety system.

Setting a new standard of safety for the motorcycle, scooter and light mobility power sports industries with the first-ever 4D radar-based motorcycle safety platform.

Overview

Preventing collisions and protecting riders

PFF Rider Assistance Solution (RAS) is enhancing rider safety with Radar-on-Chip (RoC) sensor imaging and is designed to complement the rider. The platform provides the highest possible resolution and the most granular details to ensure reliable system operation in all weather and lighting conditions. Alerts from RAS sensors are communicated through dash, mirror and emergency lights, as well as sound through the audio system or headset, and are highly customizable to your specific needs or requirements.

PFF Rider Assistance Solution (RAS) is enhancing rider safety with Radar-on-Chip (RoC) sensor imaging and is designed to complement the rider. The platform provides the highest possible resolution and the most granular details to ensure reliable system operation in all weather and lighting conditions. Alerts from RAS sensors are communicated through dash, mirror and emergency lights, as well as sound through the audio system or headset, and are highly customizable to your specific needs or requirements.

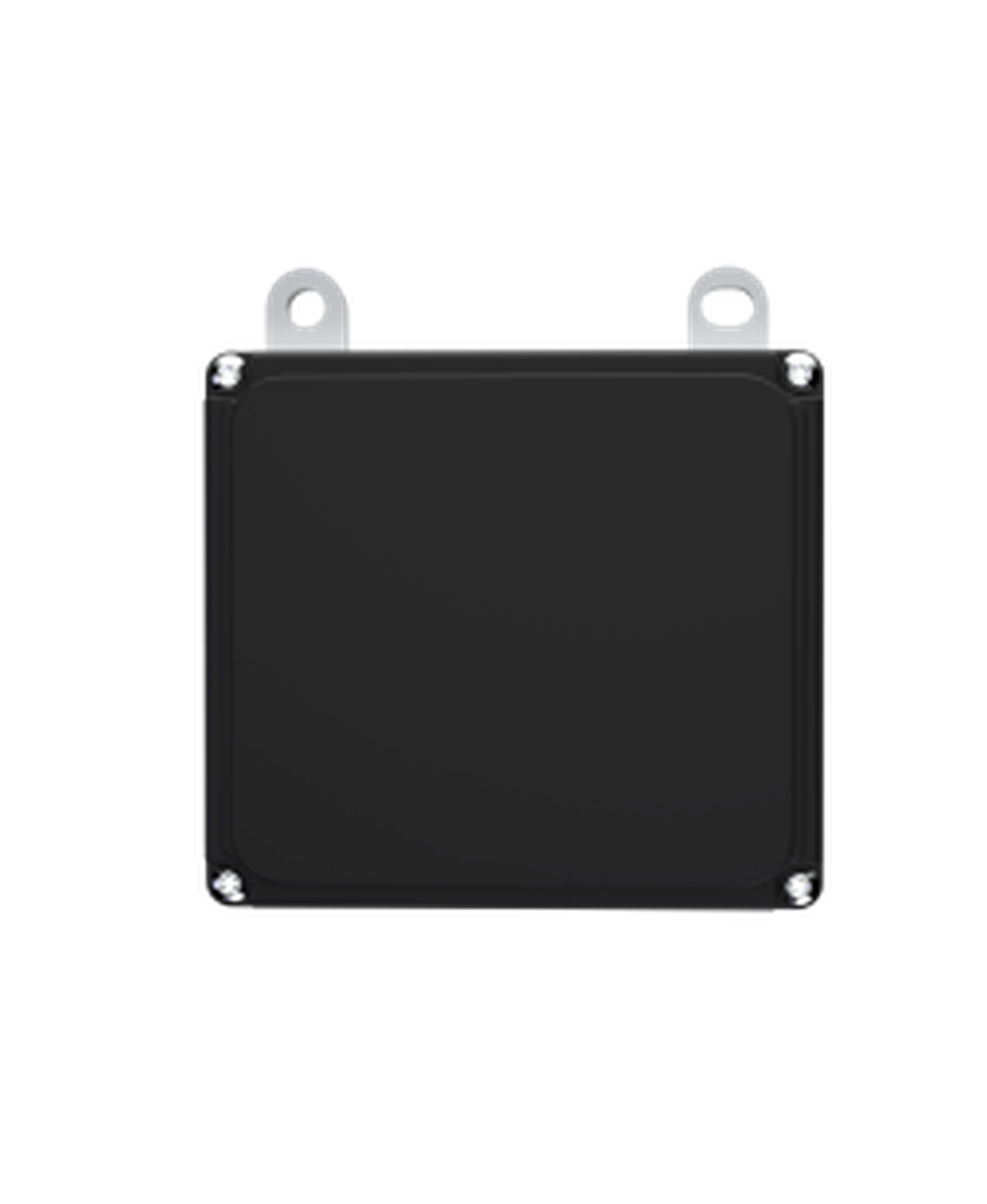

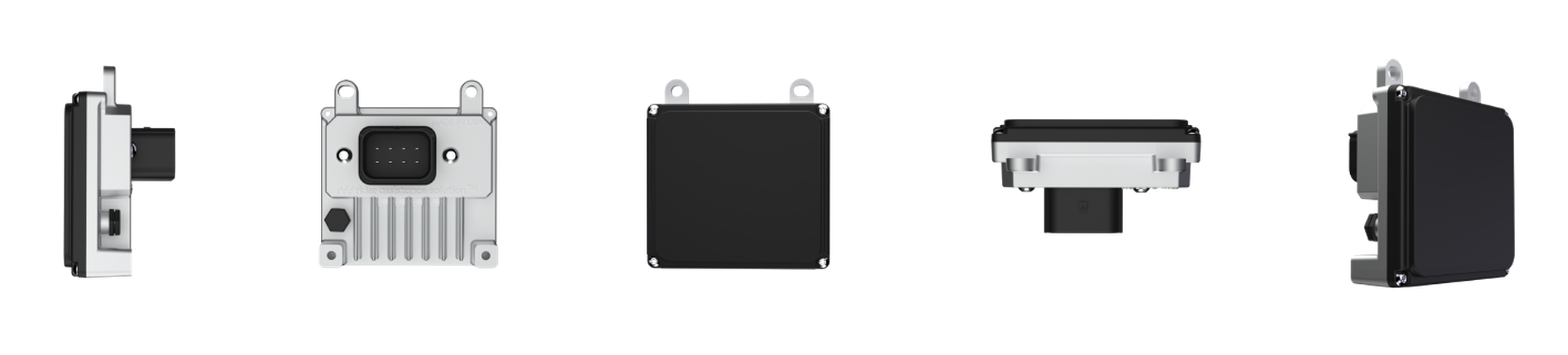

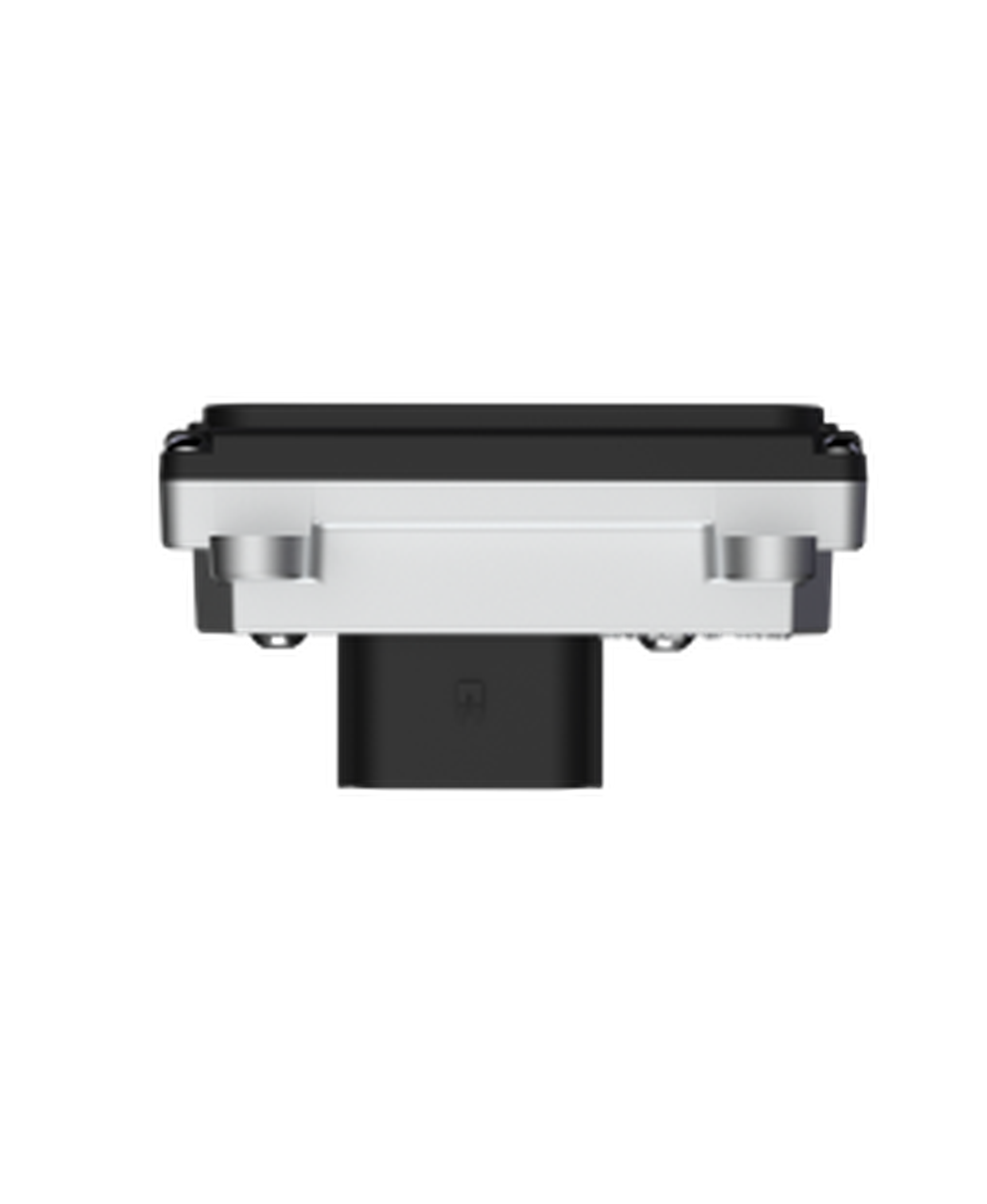

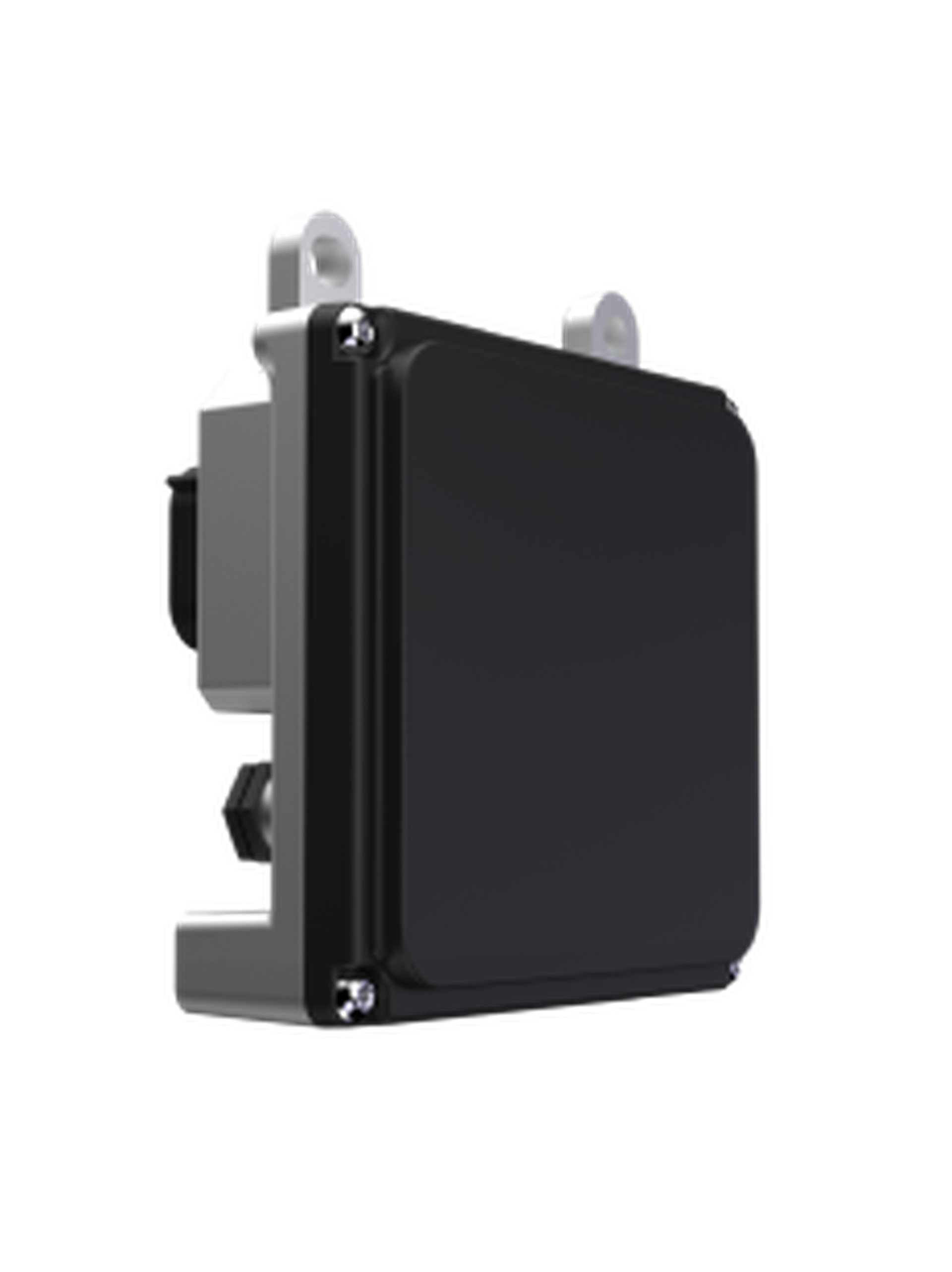

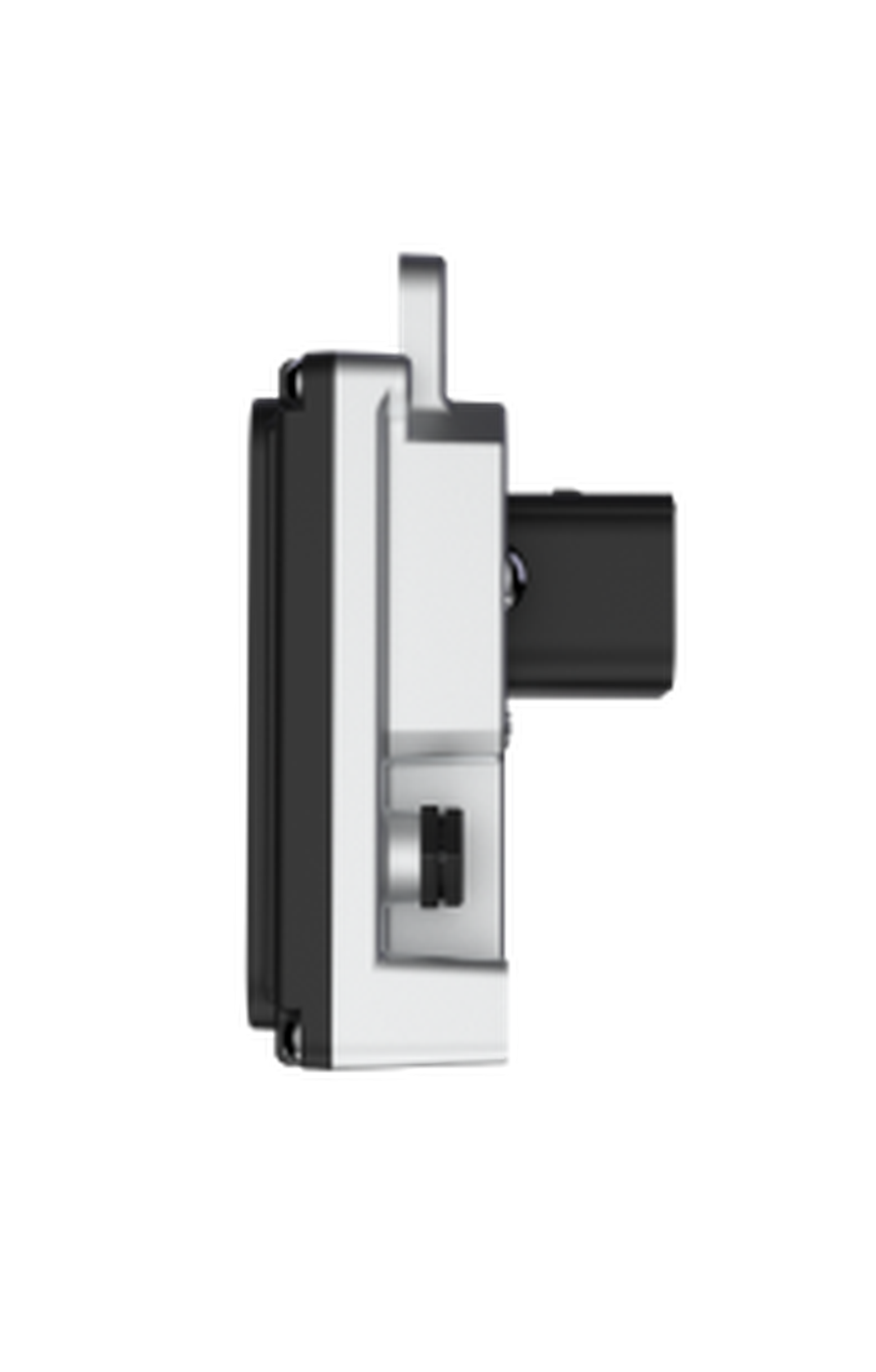

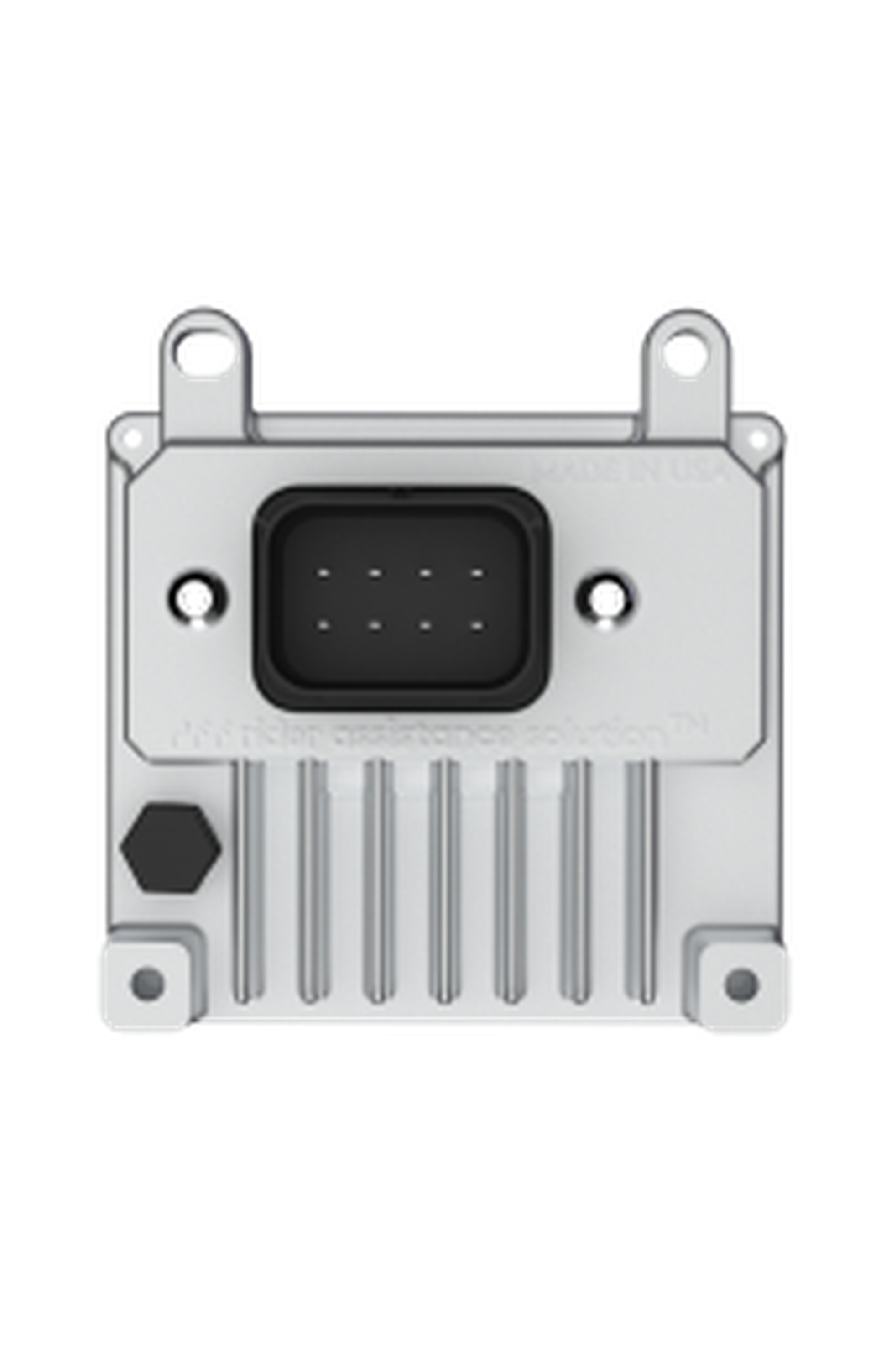

IMAGES

SPECIFICATIONS

Frequency band: 76-77 GHz

Field of view (Azimuth): 25°(min)

Target detection distance: 150 m

Max target relative speed: 150 km/h

Power consumption: 20W (peak)

Frames per second: 15

Angular resolution: 1°

Targets elevation detection capabilities

Min road curvature: 125 m

Active Alignment Adjustment

Standards: AEC-Q100; ISO 26262, 5623-2013, 14229, 11898; CE; FCC

Compact design: 75’’ x 83’’ x 47’’

Number of Tx/Rx Antennas: 22/23

Dimensions: 75L x 83W x 47H

FEATURES

Forward Collision Warning (FCW):
tracks the trajectory and velocity of dynamic vehicles to predict possible collisions within the rider's path of travel.

Following Cruise Control (FCC):
automatically adapts vehicle speed to surrounding traffic by regulating engine torque when slower vehicles are detected in front of the rider. With a dedicated dashboard menu, following distance and throttle control can be adjusted in real time.

DOCUMENTATION

For more detailed information and specifications, download our PFF Rider Assistance Solution product sheet.

Download product sheet
